A286
A286 is precipitation hardening, austenitic stainless steel designed for use at temperatures up to 1300°F (704°C)
We could delivery A286 forging material as per the standard of ASTM A638
A286 will be melted by AOD refining or vacuum induction melting. Vacuum arc or electroslag remelting procedure
A286 is solution annealed at 1800 F and oil quenched, followed by holding at 1325 F for 16 hours and air cool. This treatment develops high strength for the alloy
A286 is excellent up to 1300 °F(704 °C) against many atmospheres encountered in jet engine service. Up to 1800 °F(982 °C), the oxidation resistance of alloy A-286 is equivalent to that of Type 310 stainless.
The Chemical Composition of A286 is as follows:
| Element | Min | Max |
| C | -- | 0.08 max |
| Mn | -- | 2.00 max |
| Si | -- | 1.00 max |
| Cr | 13.50 | 16.00 |
| Ni | 24.00 | 27.00 |
| Mo | 1.00 | 1.75 |
| Fe | -- | Balance |
| Ti | 1.90 | 2.30 |
| V | 0.10 | 0.50 |
| AL | -- | 0.35 max |
| B |
The mechanical property of A-286 is as follows:
The Mechanical Property of Incoloy A-286 is as follows:
The Mechanical Property of Incoloy A-286 is as follows:
| Tensile Strength | Min 152KSI | Min 1000N/MM2 |
| Yield Strength | Min 116KSI | MIN 620N/MM2 |
| Elongation | Min 24% |
Due to special mechanical properties of A286 forging parts, there are many wide uses as followings:

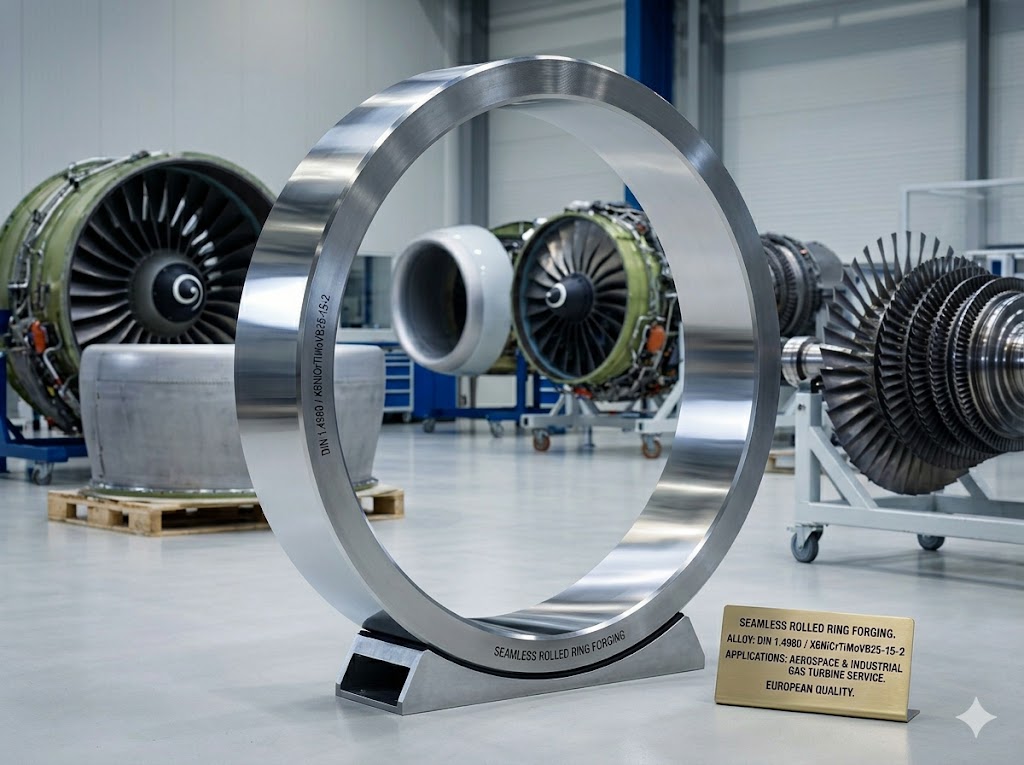

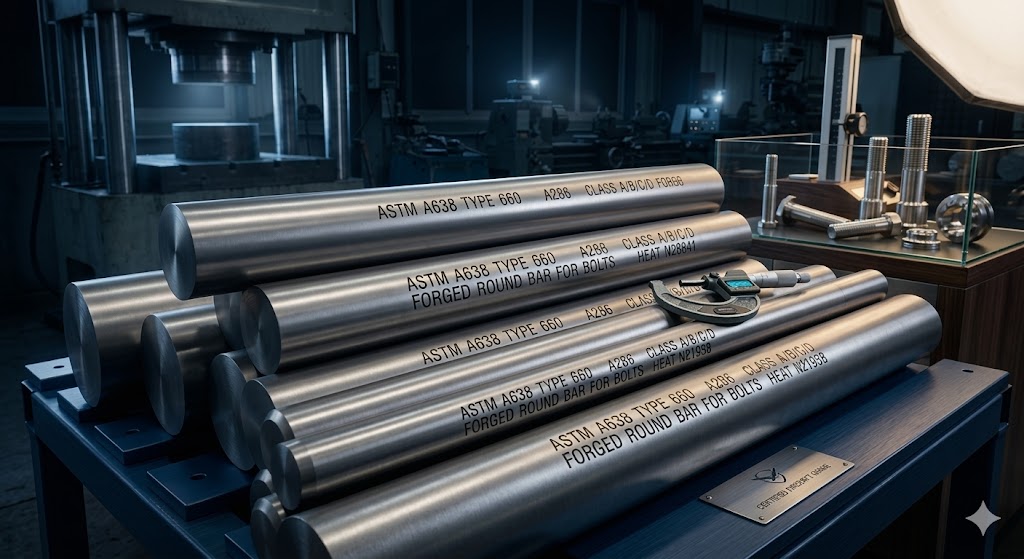

A286 seamless rolled rings and A286 forging shafts that is used in fastener applications in up to a temperature of about 1300 F in corrosive environment (such as gas turbines) and to 1500 F for continuous service in oxidizing environments.

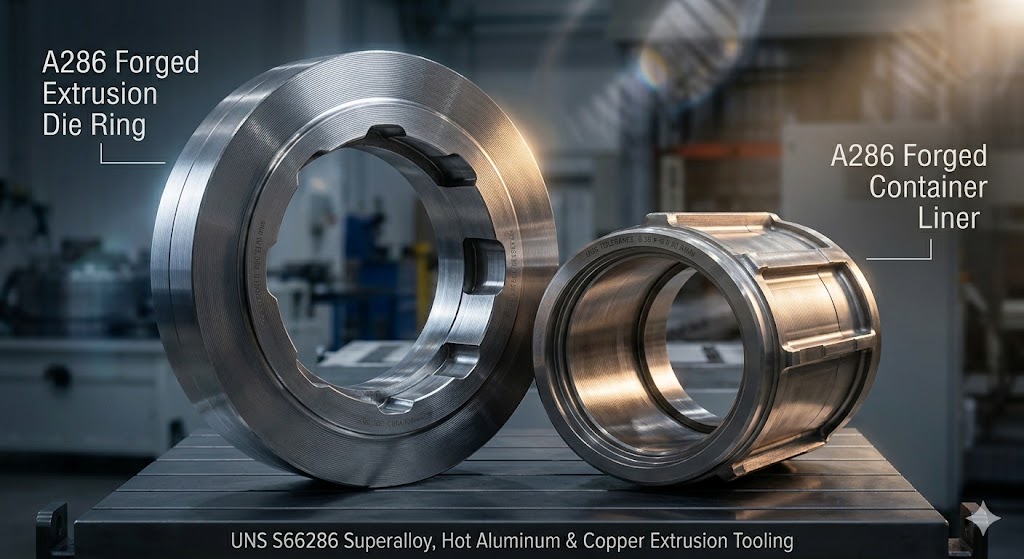

A286 forged extrusion tool,A-286 forging extrusion liners, A286 pressure pads ,forged stems, forged extrusion container,A286 forging extrudion dies,A286 forged extrusion die insert,A-286 forged extrusion mandrel that are used in aluminuum Tin,lead,brass Cu-alloy extrusion bars and profiles
Our A286 forged parts will be Ultrasonic testing as per standard, EN10228-3,Sep1921,ASTM A388 and so on
We could supply A286 super allloy forging parts certificate as per the standard of EN10204-3.1 or EN10204-3.2 of third party
Except A286 forging parts, we could also supply Incoloy alloy A-266 forgings material,AISI 660 forged part.1.2779 forging parts.
Please send us the size or drawing of A286 forged material that you need, we are glad to quote the best price for your side
